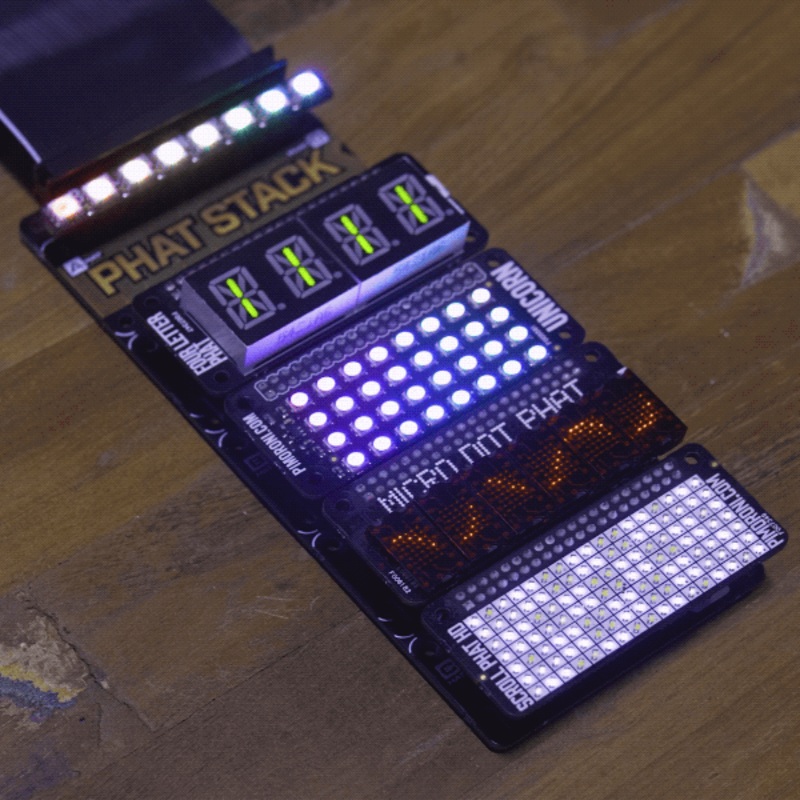

Pimoroni pHAT Stack|Fully assembled kit

Description

A preposterous pile of peripherals on your Pi! Mix and match 3 HATs or 5 pHATs into a platter of functionality. Use pHAT Stack for specific setups and projects, or just as a handy way to use several HATs or pHATs at once.

pHAT Stack is the big brother to theMini Black HAT Hack3r. It has 6 sets of 2×20 pin headers, one for connecting to your Pi with the included ribbon cable, and the other 5 for a mix ofHATs and/or pHATs. The kits include rubber feet to hold pHAT Stack steady (and prevent it from scratching your desk), and metal standoffs to mount your HATs and pHATs firmly in a more permanent fashion.

Note that you’ll need to ensure that there aren’t any pin clashes between the boards that you’re using together. To check which pins are used by each board, check them onpinout.xyz, or try thepHAT Stack configurator!

Check out the Pimoronigetting started guidefor more tips on using pHAT Stack.

Features

• Five sets of 2×20 pin headers (plus one to connect to your Pi)
• HAT and pHAT mounting holes (M2.5) and labels
• Handy pinout, including BCM numbers and descriptive labels

Kits include

• pHAT Stack PCB
• 6x 2×20 male GPIO pins (pre-soldered in fully assembled kit)
• 5x pairs of black brass standoffs
• 4x rubber non-slip feet
• 40-way black GPIO ribbon cable

Provided there aren’t any clashes between the pins used by HATs and pHATs, you can get pretty crazy with the boards that you combine together. Boards likeFour Letter pHAT,Scroll pHAT HD, andUnicorn HAT HDare ideal for displaying data in dashboard-type setups, and boards likeTouch pHAT,Piano HAT, andDrum HATlet you add input to your projects. There are some suggested setups below.

Suggested setups

Build anitty-bitty beat boxwithPiano HAT,Drum HAT, andSpeaker pHAT. Because Piano HAT and Drum HAT use different I2C addresses, they’ll work quite happily alongside each other. Speaker pHAT gives your beat box a built-in speaker.

Make analarm clock, or even aradio alarm clock, withFour Letter pHAT,Touch pHAT, andSpeaker pHAT. Display the time onFour Letter pHAT, use Touch pHAT to cancel or snooze the alarm, and Speaker pHAT to beep when the alarm goes off!

Create aweather station with built-in dashboardusingEnviro pHAT,Four Letter pHAT, andScroll pHAT HD. Show the current temperature on Four Letter pHAT, and a graph of recent temperature readings on Scroll pHAT HD.

Notes

• Solder yourself and PCB only kits require soldering
• When using HATs, be careful not to short pins on components on the underside of the HATs. A couple of pieces of insulating tape on the underside of the board can protect against this.
• Board dimensions: 162x65x1.75mm(LxWxH)
